Aluminium Alloy Plates: Comprehensive Guide

At ASC LLP, we specialize in providing high-quality aluminium alloy plates tailored to meet the needs of various industries. Our extensive range of aluminium plates is designed to offer unparalleled strength, durability, and versatility for numerous applications. In this guide, we will explore the properties, advantages, and applications of aluminium alloy plates, as well as provide information on why we are your ideal choice for aluminium plate suppliers.

What Are Aluminium Alloy Plates?

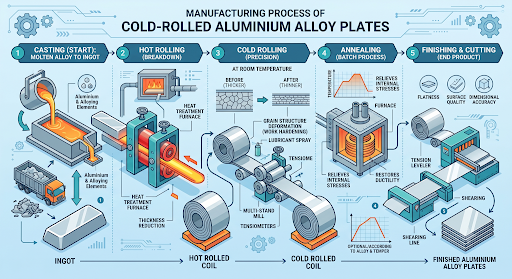

Aluminium alloy plates are flat pieces of aluminium that have been alloyed with other elements to enhance their properties. These plates are manufactured through processes such as casting or rolling and are available in various grades and thicknesses. The alloying elements, such as copper, manganese, magnesium, and silicon, impart specific characteristics to the aluminium, making it suitable for a wide range of applications.

Aluminium Alloy Plates

Properties of Aluminium Plates

Aluminium plates are renowned for their exceptional properties, which make them a preferred choice in many industrial and commercial applications:

  1. Lightweight: Aluminium is significantly lighter than many other metals, which makes aluminium alloy plates ideal for applications where weight reduction is crucial, such as in aerospace and automotive industries.
  2. High Strength-to-Weight Ratio: Despite their light weight, aluminium plates offer impressive strength. This characteristic is particularly beneficial in applications requiring a balance between strength and weight.
  3. Corrosion Resistance: Aluminium naturally forms a protective oxide layer that shields it from corrosion. This makes aluminium alloy plates suitable for use in harsh environments and outdoor applications.
  4. Excellent Machinability: Aluminium plates are easy to machine, cut, and fabricate, which allows for precise customization and efficient production.
  5. Thermal and Electrical Conductivity: Aluminium has good thermal and electrical conductivity, making aluminium plates useful in applications involving heat dissipation or electrical conduction.
  6. Recyclability: Aluminium is highly recyclable without loss of quality, contributing to sustainable practices and reducing environmental impact.

Advantages of Aluminium Plates

The use of aluminium plates offers several advantages across different industries:

  1. Versatility: Aluminium plates can be used in a variety of applications, including aerospace components, automotive parts, construction materials, marine equipment, and more. Their versatility is due to their adaptable properties and ease of processing.
  2. Cost-Effectiveness: While aluminium plates may have a higher initial cost compared to some other materials, their long-term benefits, such as durability and low maintenance, often result in cost savings over time.
  3. Aesthetic Appeal: Aluminium plates can be finished in various ways, including anodizing and painting, to achieve a desired appearance. This makes them suitable for architectural applications where aesthetics are important.
  4. Enhanced Safety: The lightweight nature of aluminium plates contributes to safer handling and installation. Additionally, their corrosion resistance helps maintain structural integrity and safety over time.
  5. High Performance: In industries where performance is critical, such as aerospace and defense, aluminium alloy plates deliver reliable performance under demanding conditions.
Aluminium Plates
Aluminium Plates

Your Content Goes Here

Your Content Goes Here

Schedule and Size Chart

Plate Thickness (mm) Plate Width (mm) Plate Length (mm)
1 1000 2000
2 1250 2500
3 1500 3000
4 2000 4000
5 2500 5000
6 3000 6000
8 4000 8000
10 5000 10000

Mechanical Properties Chart

Property Value
Yield Strength 200 – 350 MPa (varies by alloy)
Tensile Strength 250 – 450 MPa (varies by alloy)
Elongation 5% – 30% (varies by alloy and thickness)
Hardness 40 – 120 HB (varies by alloy)
Shear Strength 150 – 300 MPa (varies by alloy)

Specifications Chart

Specification Description
Grade 1050, 2024, 3003, 5052, 6061, 7075 (varies by application)
Standard ASTM B209, EN 485, JIS H4000
Finish Mill, Anodized, Painted, Polished
Form Plates, Sheets, and Custom Fabrications

Chemical Composition Chart

Alloy Grade Aluminum (Al) Copper (Cu) Manganese (Mn) Magnesium (Mg) Silicon (Si) Zinc (Zn) Other Elements
1050 99.5%+ 0.25% max Iron, others
2024 Balance 3.8 – 4.9% 0.3 – 0.9% 1.2 – 1.8% 0.5% max 0.25% max
3003 Balance 0.12% max 0.05 – 0.20% 0.8 – 1.5% 0.6 – 0.9% 0.10% max
5052 Balance 0.15% max 0.10% max 2.2 – 2.8% 0.25 – 0.50% 0.10% max
6061 Balance 0.15% max 0.15 – 0.40% 0.8 – 1.2% 0.4 – 0.8% 0.25% max 0.15% max
7075 Balance 1.2 – 1.6% 0.3 – 0.8% 2.1 – 2.9% 0.4% max 5.1 – 6.1%

Physical Properties Chart

Property Value
Density 2.7 g/cm³
Melting Point 660°C
Thermal Conductivity 120 – 180 W/mK (varies by alloy)
Electrical Conductivity 30 – 70% IACS (varies by alloy)
Coefficient of Thermal Expansion 23 x 10⁻⁶ /°C

Application Chart

Application Alloy Grade Typical Thickness Common Uses
Aerospace 2024, 7075 1 – 25 mm Aircraft structures, wing panels
Automotive 5052, 6061 2 – 10 mm Engine components, body panels
Construction 3003, 6061 3 – 12 mm Facades, roofing, structural beams
Marine 5052, 5083 4 – 25 mm Boat hulls, marine fittings
Electronics 6061, 1050 1 – 5 mm Heat sinks, enclosures

Choosing the Right Aluminium Plate Supplier

When selecting an aluminium plate supplier, it is essential to consider factors such as product quality, range of grades and sizes, and customer service. At ASC LLP, we are committed to providing our clients with high-quality aluminium alloy plates that meet industry standards and specifications.

Our team of experts is dedicated to offering personalized support, ensuring you receive the right aluminium plates for your specific needs. We maintain a comprehensive inventory of aluminium plates and work with trusted manufacturers to guarantee the highest quality and performance.

In summary, aluminium alloy plates offer numerous benefits, including lightweight, high strength, corrosion resistance, and versatility. Their diverse properties make them suitable for a wide range of applications across various industries. As leading aluminium plate supplier, ASC LLP is your trusted partner for premium-quality aluminium alloy plates. Whether you need plates for aerospace, automotive, construction, marine, or electronics applications, we are here to provide you with the best products and services to meet your requirements.
