Hastelloy Flanges: Superior Performance in Challenging Environments

As industries evolve and demands for high-performance materials increase, the need for specialized components like Hastelloy flanges becomes crucial. At Amardeep Steel Centre LLP, we pride ourselves on being leading Hastelloy Flanges traders and exporters in India, offering top-quality products that meet the stringent requirements of various industrial applications. This page aims to provide a comprehensive understanding of Hastelloy flanges, including their properties, advantages, and why they are a preferred choice for many industries worldwide.

What Are Hastelloy Flanges?

Hastelloy is a family of corrosion-resistant superalloys primarily composed of nickel, molybdenum, and chromium. These alloys are designed to withstand the harshest environments, making them ideal for use in industries where resistance to corrosion and extreme temperatures is critical. Hastelloy flanges are integral components that connect pipes, valves, pumps, and other equipment, ensuring the smooth flow of fluids while maintaining the integrity of the system under severe conditions.

At Amardeep Steel Centre LLP, we offer a wide range of Hastelloy flanges that cater to the diverse needs of our clients. Our products are known for their exceptional quality, durability, and ability to perform in the most demanding environments.

Hastelloy Alloy Flanges

Properties of Hastelloy Flanges

Hastelloy flanges are renowned for their remarkable properties, which make them indispensable in various industries:

  1. Corrosion Resistance: Hastelloy alloys are known for their superior resistance to corrosion, especially in oxidizing and reducing environments. This makes Hastelloy flanges ideal for use in chemical processing, oil and gas, and marine industries.
  2. High-Temperature Strength: Hastelloy flanges retain their mechanical properties even at elevated temperatures. This characteristic makes them suitable for applications involving high-temperature processes, such as heat exchangers and reactors.
  3. Versatility: Hastelloy flanges are compatible with various media, including acidic, alkaline, and chloride-rich environments. Their versatility ensures reliable performance across a wide range of industrial applications.
  4. Durability: The robust construction of Hastelloy flange ensures long-term durability and resistance to wear and tear, reducing the need for frequent replacements and maintenance.
  5. Weldability: Hastelloy flanges exhibit excellent weldability, allowing for easy installation and maintenance. The alloy’s ability to form strong, defect-free welds ensures the reliability of the entire piping system.

Advantages of Hastelloy Flanges

Choosing Hastelloy flanges for your industrial needs offers numerous advantages:

  1. Extended Lifespan: The corrosion resistance and durability of Hastelloy flanges ensure a longer service life, even in the harshest conditions. This reduces downtime and maintenance costs, making them a cost-effective solution.
  2. Enhanced Safety: The reliability of Hastelloy flanges in extreme environments enhances the safety of your operations. Whether dealing with corrosive chemicals or high-temperature processes, Hastelloy flanges minimize the risk of leaks and failures.
  3. Versatile Applications: Hastelloy flanges are suitable for a wide range of applications, including chemical processing, power generation, pharmaceuticals, and more. Their versatility ensures that they can meet the specific demands of various industries.
  4. Compliance with Industry Standards: At Amardeep Steel Centre LLP, we ensure that our Hastelloy flanges meet the highest industry standards, including ASTM, ASME, and DIN. This compliance guarantees that you receive products of the highest quality and performance.
Hastelloy Flanges
Hastealloy flanges

Schedule and Size Chart

Size (inches) Schedule (SCH) Outside Diameter (OD) Thickness (inches) Flange Type
1/2″ SCH 10, 40, 80 0.84 0.109 – 0.147 Weld Neck, Slip-On
3/4″ SCH 10, 40, 80 1.05 0.113 – 0.154 Weld Neck, Slip-On
1″ SCH 10, 40, 80 1.32 0.133 – 0.179 Weld Neck, Socket Weld
2″ SCH 10, 40, 80 2.38 0.154 – 0.218 Weld Neck, Blind
4″ SCH 10, 40, 80 4.5 0.237 – 0.337 Weld Neck, Slip-On
6″ SCH 10, 40, 80 6.625 0.280 – 0.432 Weld Neck, Lap Joint
8″ SCH 10, 40, 80 8.625 0.322 – 0.500 Weld Neck, Slip-On
10″ SCH 10, 40, 80 10.75 0.365 – 0.593 Weld Neck, Blind
12″ SCH 10, 40, 80 12.75 0.375 – 0.687 Weld Neck, Slip-On
16″ SCH 10, 40, 80 16.0 0.500 – 0.875 Weld Neck, Slip-On

Mechanical Properties Chart

Property Value
Tensile Strength 100-140 ksi (690-965 MPa)
Yield Strength 45-70 ksi (310-485 MPa)
Elongation (in 2″) 40-50%
Hardness (Rockwell B) 80-95
Impact Strength (Charpy) 100-150 ft-lb

Specifications Chart

Specification Standard
ASTM ASTM B564
ASME ASME B16.5, B16.47
Pressure Rating 150# to 2500#
Sizes 1/2″ to 48″
Material Grades Hastelloy C276, C22, B2, X
Type Weld Neck, Slip-On, Blind, Lap Joint, Socket Weld

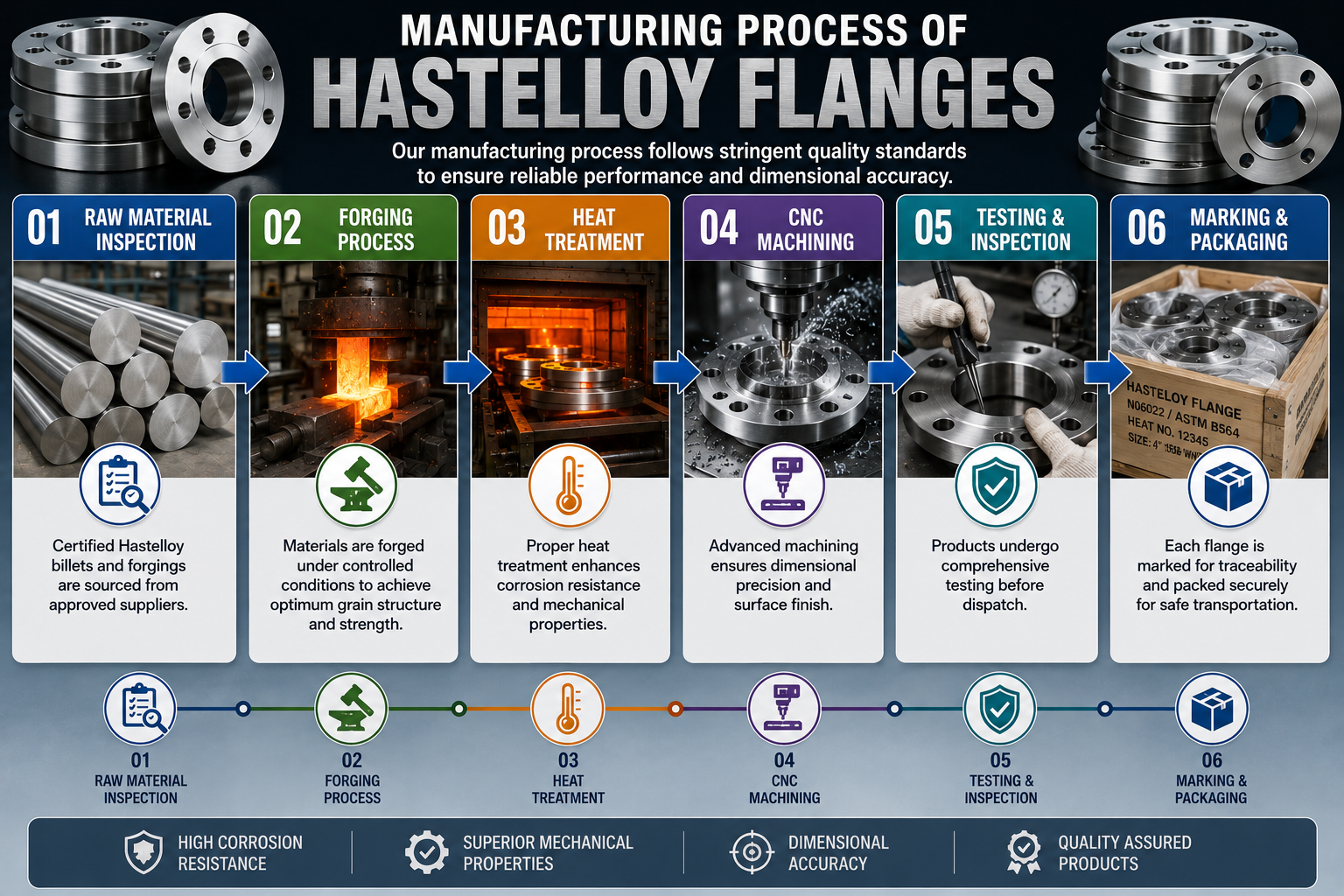

Manufacturing Process Forged, Machined

Chemical Composition Chart

Element Hastelloy C276 (%) Hastelloy C22 (%) Hastelloy B2 (%)
Nickel (Ni) 57.0 min 56.0 min 66.0 min
Molybdenum (Mo) 15.0-17.0 13.0-15.0 26.0-30.0
Chromium (Cr) 14.5-16.5 20.0-22.5 1.0 max
Iron (Fe) 4.0-7.0 2.0-6.0 2.0 max
Tungsten (W) 3.0-4.5 2.5-3.5
Cobalt (Co) 2.5 max 2.5 max 1.0 max
Carbon (C) 0.01 max 0.015 max 0.02 max
Manganese (Mn) 1.0 max 0.5 max 1.0 max
Silicon (Si) 0.08 max 0.08 max 0.1 max

Physical Properties Chart

Property Value
Density 8.89 g/cm³
Melting Point 1325-1370°C (2417-2500°F)
Thermal Conductivity 9.9 W/m·K at 25°C
Electrical Resistivity 1.21 μΩ·m at 20°C
Modulus of Elasticity 205 GPa
Specific Heat Capacity 427 J/kg·K at 25°C

Application Chart

Industry Applications
Chemical Processing Heat exchangers, reactors, evaporators, and piping systems exposed to corrosive media such as sulfuric acid, hydrochloric acid, and chlorine.
Oil & Gas Offshore platforms, subsea equipment, and refinery components where resistance to sour gas, seawater, and aggressive chemicals is essential.
Power Generation Boiler components, flue gas desulfurization systems, and nuclear reactor components that require high-temperature and corrosion resistance.
Pharmaceutical Production and processing equipment for the manufacture of pharmaceuticals, where purity and resistance to corrosive cleaning agents are critical.
Marine Components for marine engineering, such as valves, pumps, and seawater piping systems, that require resistance to seawater and marine environments.
Aerospace Turbine blades, combustors, and other components exposed to high temperatures and corrosive environments in jet engines and other aerospace applications.

Why Choose Amardeep Steel Centre LLP for Hastelloy Flanges?

Amardeep Steel Centre LLP has established itself as a trusted name in the field of Hastelloy flanges suppliers, traders, and exporters in India. Here’s why our clients prefer us:

  1. Quality Assurance: We are committed to delivering only the highest quality Hastelloy flanges, manufactured in compliance with international standards and thoroughly tested for durability and performance.
  2. Extensive Inventory: Our large inventory ensures that we can meet the diverse needs of our clients promptly, offering a wide range of Hastelloy flanges in different sizes, specifications, and grades.
  3. Global Reach: With a robust network of distributors and logistics partners, we export Hastelloy flanges to clients worldwide, ensuring timely delivery and reliable service.
  4. Technical Expertise: Our team of experienced professionals provides technical support and guidance to help clients choose the right Hastelloy flanges for their specific applications.
  5. Competitive Pricing: We offer competitive pricing without compromising on quality, making us the preferred choice for cost-conscious clients who demand excellence.

Hastelloy flange are the go-to solution for industries that require components with exceptional corrosion resistance, high-temperature stability, and mechanical strength. At Amardeep Steel Centre LLP, we are proud to be one of the leading Hastelloy flanges suppliers, traders, and exporters in India, offering a comprehensive range of flanges that meet the highest standards of quality and performance. Whether you need flanges for chemical processing, aerospace, power generation, or any other demanding application, our Hastelloy flanges provide the reliability and durability you can trust.
